CM800DU-12H

Dual IGBT Module

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Powerex Power Semiconductors CM800DU-12H IGBT MOD 600V 800A 1500W DigiKey 0 1 units
$322.9

CM800DU-12H Datasheet (76.70 KB)

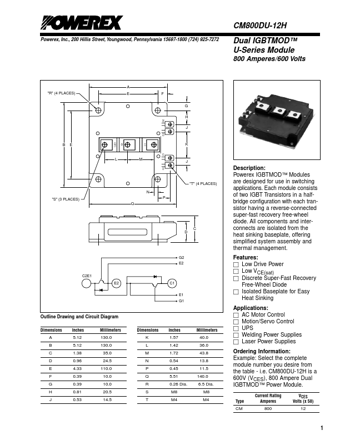

Preview of CM800DU-12H PDF Datasheet

Datasheet Details

Part number:

CM800DU-12H

Manufacturer:

Powerex Power Semiconductors

File Size:

76.70 KB

Description:

Dual igbt module

CM800DU-12H Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery Free-Wheel Diode

* Isolated Baseplate for Easy Heat Sinking Applications:

* AC Motor Control

* Motion/Servo Control

* UPS

* Welding Power Supplies

* Laser Power Su

CM800DU-12H General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinki.
