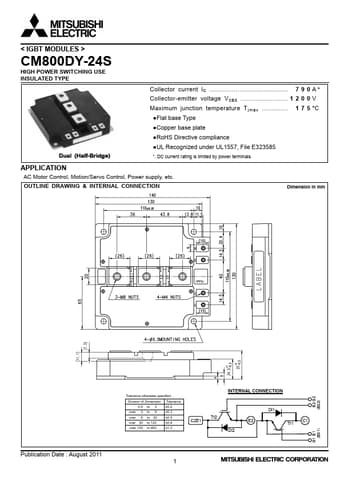

< IGBT MODULES > CM800DY-24S HIGH POWER SWITCHING USE INSULATED TYPE Collector current IC …… 7 9 0 A Collector-emitter voltage VCES … 1 2 0 0 V Maximum junction temperature T j m a x 1 7 5 °C Flat base Type Copper base plate Dual (Half-Bridge) RoHS Directive compliance UL Recognized under UL1557, File E323585 .

DC current rating is limited by power terminals.

APPLICATION AC Motor Control, Motion/Servo Control, Power supply, etc.
