CM800E2C-66H 2nd-Version HVIGBT Modules

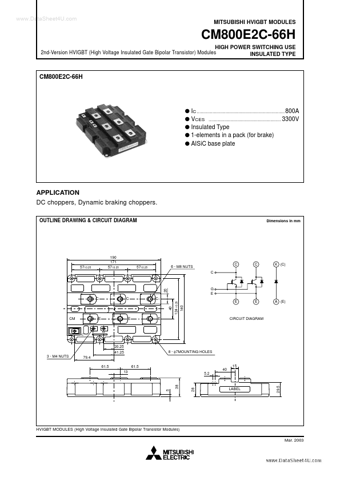

www.DataSheet4U.com MITSUBISHI HVIGBT MODULES CM800E2C-66H HIGH POWER SWITCHING USE 2nd-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules INSULATED TYPE CM800E2C-66H q IC 800A q VCES 3300V q Insulated Type q 1-elements in a pack (for brake) q AISiC base plate APPLICATION DC choppers, Dynamic braking choppers. OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 57 ±0.25 190 171 57 ±0.25 57 ±0.25 6 - M8 NUTS C C C K (C) G E 124 ±0.25 140 C C C 40 20 E E A.
