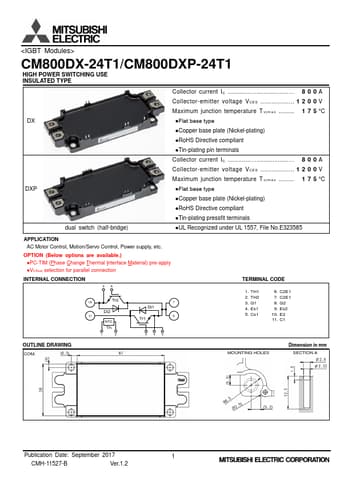

CM800DX-24T1/CM800DXP-24T1
HIGH POWER SWITCHING USE INSULATED TYPE
Collector current IC .............…..................… 8 0 0 A
Collector-emitter voltage VCES .................. 1 2 0 0 V
Maximum junction temperature T vj m a x ......... 1 7 5 °C
DX
●Flat base type
●Copper base plate (Nickel-plating)
●RoHS Directive compliant
●Tin-plating pin terminals
DXP
Collector current IC .............…..................… 8 0 0 A Collector-emitter voltage VCES .................. 1 2 0 0 V Maximum junction temperature T vj m a x ......... 1 7 5 °C ●Flat base type ●Copper base plate (Nickel-plating)
●RoHS Directive compliant
●Tin-plating pressfit terminals
dual switch (half-bridge)
●UL Recognized under UL 1557, File No.
