CM800DXP-24T1, CM800DX-24T1 Datasheet - Mitsubishi

CM800DXP-24T1 IGBT Modules

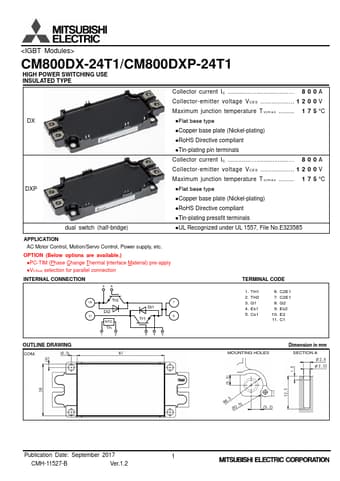

CM800DX-24T1/CM800DXP-24T1 HIGH POWER SWITCHING USE INSULATED TYPE Collector current IC …… 8 0 0 A Collector-emitter voltage VCES 1 2 0 0 V Maximum junction temperature T vj m a x 1 7 5 °C DX Flat base type Copper base plate (Nickel-plating) RoHS Directive compliant Tin-plating pin terminals DXP Collector current IC …… 8 0 0 A Collector-emitter voltage VCES 1 2 0 0 V Maximum junction temperature T vj m a x 1 7 5 °C Flat base type Copper .

CM800DX-24T1-Mitsubishi.pdf

This datasheet PDF includes multiple part numbers: CM800DXP-24T1, CM800DX-24T1. Please refer to the document for exact specifications by model.
CM800DXP-24T1 Datasheet Preview Page 2 CM800DXP-24T1 Datasheet Preview Page 3

Datasheet Details

Part number:

CM800DXP-24T1, CM800DX-24T1

Manufacturer:

Mitsubishi

File Size:

1.21 MB

Description:

Igbt modules.

Note:

This datasheet PDF includes multiple part numbers: CM800DXP-24T1, CM800DX-24T1.
Please refer to the document for exact specifications by model.
