EV12DS130BG - Low Power 12-bit 3 Gsps Digital to Analog Converter

Product Overview

📥 Download Datasheet

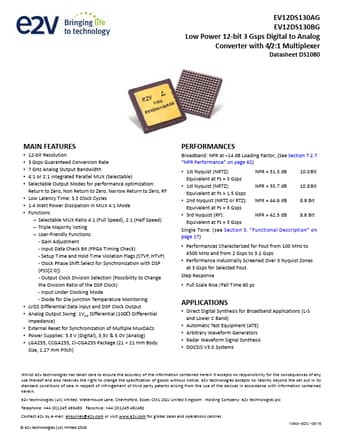

EV12DS130BG Low Power 12-bit 3 Gsps Digital to Analog Converter by e2v - Datasheet Preview — Datasheet preview – EV12DS130BG

Datasheet Details

Part number	EV12DS130BG
Manufacturer	e2v
File Size	2.06 MB
Description	Low Power 12-bit 3 Gsps Digital to Analog Converter
Datasheet	EV12DS130BG Datasheet
Note	This datasheet PDF includes multiple part numbers: EV12DS130BG, EV12DS130AG. Please refer to the document for exact specifications by model.
Additional preview pages of the EV12DS130BG datasheet.

Product details

Features

12‐bit Resolution.
3 Gsps Guaranteed Conversion Rate.
7 GHz Analog Output Bandwidth.
4:1 or 2:1 integrated Parallel MUX (Selectable).
Selectable Output Modes for performance optimization: Return to Zero, Non Return to Zero, Narrow Return to Zero, RF.
Low Latency Time: 3.5 Clock Cycles.
1.4 Watt Power Dissipation in MUX 4:1 Mode.
Functions.
Selectable MUX Ratio 4:1 (Full Speed), 2:1 (Half Speed).
Triple Maj.
