EV12DS400AMZP - Low power 12-bit 4.5GSps Digital to Analog Converter

Product Overview

📥 Download Datasheet

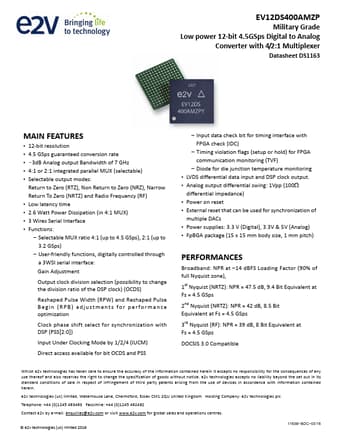

EV12DS400AMZP Low power 12-bit 4.5GSps Digital to Analog Converter by e2v - Datasheet Preview — Datasheet preview – EV12DS400AMZP

Datasheet Details

Part number	EV12DS400AMZP
Manufacturer	e2v
File Size	2.04 MB
Description	Low power 12-bit 4.5GSps Digital to Analog Converter
Datasheet	EV12DS400AMZP Datasheet
Additional preview pages of the EV12DS400AMZP datasheet.

Product details

Features

12‐bit resolution.
4.5 GSps guaranteed conversion rate.
3dB Analog output Bandwidth of 7 GHz.
4:1 or 2:1 integrated parallel MUX (selectable).
Selectable output modes: Return to Zero (RTZ), Non Return to Zero (NRZ), Narrow Return To Zero (NRTZ) and Radio Frequency (RF).
Low latency time.
2.6 Watt Power Dissipation (in 4:1 MUX).
3 Wires Serial Interface.
Functions:.
Selectable MUX ratio 4:1 (up t.
