TS86101G2B - 4:1 10-bit 1.2 Gsps MUXDAC

📥 Download Datasheet

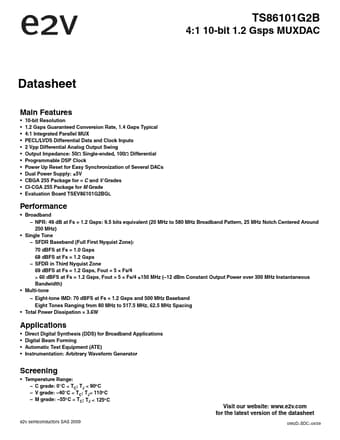

TS86101G2B Datasheet Preview — Preview of TS86101G2B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TS86101G2B
Manufacturer: e2v
File Size: 873.87 KB
Datasheet: TS86101G2B-e2v.pdf
Description: 4:1 10-bit 1.2 Gsps MUXDAC

TS86101G2B Product details

Features

10-bit Resolution.
1.2 Gsps Guaranteed Conversion Rate, 1.4 Gsps Typical.
4:1 Integrated Parallel MUX.
PECL/LVDS Differential Data and Clock Inputs.
2 Vpp Differential Analog Output Swing.
Output Impedance: 50Ω Single-ended, 100Ω Differential.
Programmable DSP Clock.
Power Up Reset for Easy Synchronization of Several DACs.
Dual Power Supply: ±5V.
CBGA 255 Package for = C and V Grades.
CI-CGA 255 P.
