54ALS00A Datasheet - Texas Instruments

Quadruple 2-Input Positive-NAND Gates

54ALS00A General Description

These devices contain four independent 2-input positive-NAND gates. They perform the Boolean functions Y = A * B or Y = A + B in positive logic. The SN54ALS00A and SN54AS00 are characterized for operation over the full military temperature range of * 55°C to 125°C. The SN74ALS00A and.

54ALS00A Datasheet (1.24 MB)

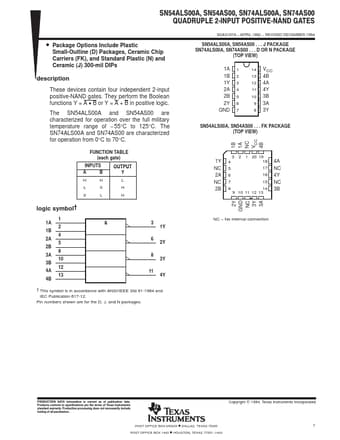

54ALS00A Datasheet Preview — Preview of 54ALS00A PDF

Datasheet Details

Part number:

54ALS00A

Manufacturer:

Texas Instruments ↗

File Size:

1.24 MB

Description:

Quadruple 2-input positive-nand gates.
SN54ALS00A, SN54AS00, SN74ALS00A, SN74AS00 QUADRUPLE 2ĆINPUT POSITIVEĆNAND GATES Package Options Include Plastic Small-Outline (D) Packages.
