54ABT240

Octal Buffer/Line Driver

54ABT240 Features

* n Output sink capability of 48 mA, source capability of 24 mA Ordering Code Military 54ABT240J-QML 54ABT240W-QML 54ABT240E-QML Package Number J20A W20A E20A Package Description 20-Lead Ceramic Dual-In-Line 20-Lead Cerpack 20-Lead Ceramic Leadless Chip Carrier, Type C Connection Diagrams Pin Assign

54ABT240 General Description

The ’ABT240 is an inverting octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver which provides improved PC board density. n Guaranteed latchup protection n High impedance glitch free bus loading during entire power up.

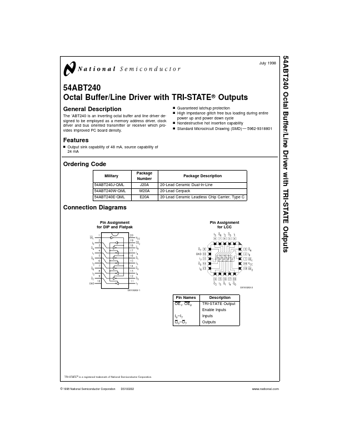

54ABT240 Datasheet (134.37 KB)

Preview of 54ABT240 PDF

Datasheet Details

Part number:

54ABT240

Manufacturer:

National Semiconductor

File Size:

134.37 KB

Description:

Octal buffer/line driver.
