54ABT244 - Octal Buffer/Line Driver

National Semiconductor

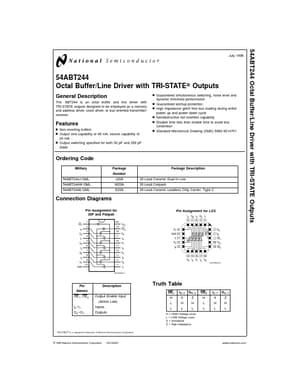

54ABT244 Datasheet Preview — Preview of 54ABT244 PDF

Datasheet Details

Part number	54ABT244
Manufacturer	National Semiconductor ↗
File Size	251.96 KB
Description	Octal Buffer/Line Driver
Datasheet	54ABT244_NationalSemiconductor.pdf

54ABT244 Product details

Description

The ’ABT244 is an octal buffer and line driver with TRI-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver.

Features

n Non-inverting buffers n Output sink capability of 48 mA, source capability of 24 mA n Output switching specified for both 50 pF and 250 pF loads Ordering Code Military 54ABT244J-QML 54ABT244W-QML 54ABT244E-QML Package Number J20A W20A E20A 20-Lead Ceramic Dual-In-Line 20-Lead Cerpack 20-Lead Ceramic Leadless Chip Carrier, Type C Package.
