54ABT241 - Octal Buffer/Line Driver

National Semiconductor

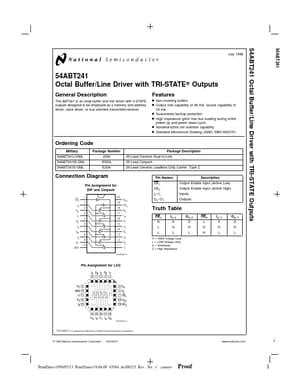

54ABT241 Datasheet Preview — Preview of 54ABT241 PDF

Datasheet Details

Part number	54ABT241
Manufacturer	National Semiconductor ↗
File Size	119.95 KB
Description	Octal Buffer/Line Driver
Datasheet	54ABT241_NationalSemiconductor.pdf

54ABT241 Product details

Description

The ABT241 is an octal buffer and line driver with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/receiver.

Features

n Non-inverting buffers n Output sink capability of 48 mA, source capability of 24 mA n Guaranteed latchup protection n High impedance glitch free bus loading during entire power up and power down cycle n Nondestructive hot insertion capability n Standard Microcircuit Drawing (SMD) 5962-9322701 Ordering Code Military 54ABT241J-QML 54ABT241W-QML 54ABT241E-QML Package Number J20A W20A E20A 20-Lead Cerpack 20-Lead Ceramic Leadless Chip Carrier, Type C Pin Names OE1 OE2 I0.
I7 O0.
O7.
