54ABT16500

18-Bit Universal Bus Transceivers

54ABT16500 Features

* n Combines D-Type latches and D-Type flip-flops for operation in transparent, latched, or clocked mode n Flow-through architecture optimizes PCB layout n Guaranteed latch-up protection n High impedance glitch free bus loading during entire power up and power down cycle n Non-destructive hot insertio

54ABT16500 General Description

These 18-bit universal bus transceivers combine D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes. Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs. For A-to-B.

54ABT16500 Datasheet (113.12 KB)

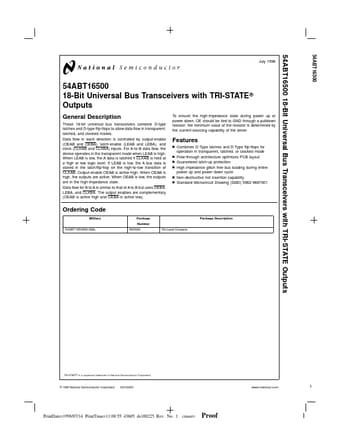

Preview of 54ABT16500 PDF

Datasheet Details

Part number:

54ABT16500

Manufacturer:

National Semiconductor

File Size:

113.12 KB

Description:

18-bit universal bus transceivers.
54ABT16500 18-Bit Universal Bus Transceivers with TRI-STATE Outputs 54ABT16500 July 1998 54ABT16500 18-Bit Universal Bus Transceivers with TRI-STAT.
