54F11 Datasheet - Texas Instruments

54F11 Triple 3-Input AND Gate

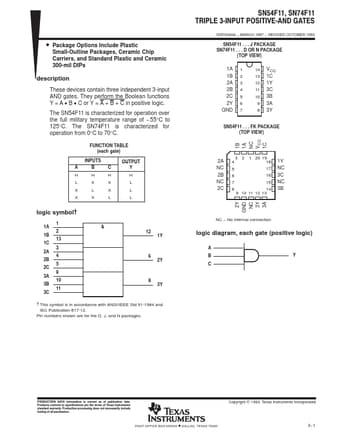

These devices contain three independent 3-input AND gates. They perform the Boolean functions Y = A * B * C or Y = A + B + C in positive logic. The SN54F11 is characterized for operation over the full military temperature range of * 55°C to 125°C. The SN74F11 is characterized.

54F11-etcTI.pdf

Preview of 54F11 PDF
54F11 Datasheet Preview Page 2 54F11 Datasheet Preview Page 3

Datasheet Details

Part number:

54F11

Manufacturer:

Texas Instruments ↗

File Size:

909.87 KB

Description:

Triple 3-input and gate.
