54F153

Dual 4-Input Multiplexer

54F153 Features

* Y Guaranteed 4000V minimum ESD protection Commercial 74F153PC Military Package Number N16E Package Description 16-Lead (0 300 Wide) Molded Dual-In-Line 16-Lead Ceramic Dual-In-Line 16-Lead (0 150 Wide) Molded Small Outline JEDEC 16-Lead (0 300 Wide) Molded Small Outline EIAJ 16-Lead Cerpack 20-

54F153 General Description

The ’F153 is a high-speed dual 4-input multiplexer with common select inputs and individual enable inputs for each section It can select two lines of data from four sources The two buffered outputs present data in the true (non-inverted) form In addition to multiplexer operation the ’F153 can genera.

54F153 Datasheet (183.93 KB)

Preview of 54F153 PDF

Datasheet Details

Part number:

54F153

Manufacturer:

National Semiconductor

File Size:

183.93 KB

Description:

Dual 4-input multiplexer.

📁 Related Datasheet

54F151A - 8-Input Multiplexer (National Semiconductor)
54F 74F151A 8-Input Multiplexer November 1994 54F 74F151A 8-Input Multiplexer General Description The ’F151A is a high-speed 8-input digital multipl.

54F151A - 8-Input Multiplexer (NXP)
.. .. .

54F153 - Dual 4-Line to 1-Line Multiplexer (Philips)
.. .. .

54F153 - DUAL 1-OF-4 DATA SELECTORS/MULTIPLEXERS (Texas Instruments)
SN54F153, SN74F153 DUAL 1ĆOFĆ4 DATA SELECTORS/MULTIPLEXERS ą SDFS052A − D2932, MARCH 1987 − REVISED OCTOBER 1993 • Permits Multiplexing From N Lines .

54F157A - Quad 2-Input Data Selector/Multiplexer (NXP)
.. .. .

54F157A - Quad 2-Input Multiplexer (National Semiconductor)
54F 74F157A Quad 2-Input Multiplexer November 1994 54F 74F157A Quad 2-Input Multiplexer General Description The ’F157A is a high-speed quad 2-input .

54F157A - Quad 2-Input Multiplexer (Texas Instruments)
SN54F157A, SN74F157A QUADRUPLE 2ĆLINE TO 1ĆLINE DATA SELECTORS/MULTIPLEXERS ą SDFS053A − MARCH 1987 − REVISED OCTOBER 1993 • Buffered Inputs and Outp.

54F158A - Quad 2-Input Data Selector/Multiplexer (NXP)
.. .. .

TAGS

54F153 Dual 4-Input Multiplexer National Semiconductor

Image Gallery

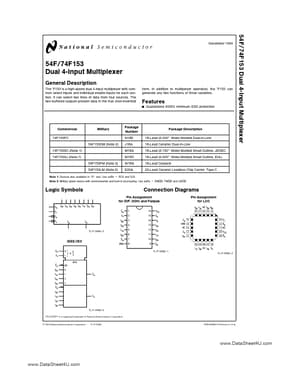

54F153 Datasheet Preview Page 2 54F153 Datasheet Preview Page 3
