74AC11109 - Dual J-K Positive-edge-Triggered Flip-Flops

Datasheet Summary

Description

These devices contain two independent J-K positive-edge-triggered flip-flops.

A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs regardless of the levels of the other inputs.

📥 Download Datasheet

Datasheet preview – 74AC11109

Datasheet Details

Part number 74AC11109
Manufacturer Texas Instruments
File Size 89.17 KB
Description Dual J-K Positive-edge-Triggered Flip-Flops
Datasheet download datasheet 74AC11109 Datasheet
Additional preview pages of the 74AC11109 datasheet.

📁 Similar Datasheet

  • 74AC11132 - QUAD 2 INPUT NAND SCHMITT TRIGGER (Philips)
  • 74AC11153 - DUAL 4 INPUT MULTIPLEXER (Philips)
  • 74AC11157 - QUAD 2 INPUT MULTIPLEXER (Philips)
  • 74AC11158 - QUAD 2 INPUT MULTIPLEXER (Philips)
  • 74AC11160 - SYNCHRONOUS BCD DECADE COUNTER (Philips)
  • 74AC11181 - 4-BIT ARITHMETIC LOGIC UNIT (Philips)
  • 74AC11190 - ASYNCHRONOUS PRESETTABLE SYNCHRONOUS DECADE UP/DOWN COUNTER (Philips)
  • 74AC11 - TRIPLE 3-INPUT AND GATE (STMicroelectronics)
  • 74AC11 - Triple 3-Input AND Gate (Fairchild Semiconductor)
  • 74AC11239 - DUAL 2 TO 4 LINE DECODER/DEMULTIPLEXER (NXP)
Other Datasheets by Texas Instruments
  • 74AC11112 - DUAL J-K NEGATIVE-EDGE-TRIGGERED FLIP-FLOPS
  • 74AC11132 - QUADRUPLE 2-INPUT POSITIVE-NAND SCHMITT-TRIGGER
  • 74AC11138 - 3-Line To 8-Line Decoder/Demultiplexer
  • 74AC11151 - 1-of-8 Data Selector/Multiplexer
  • 74AC11153 - DUAL 1-OF-4 DATA SELECTOR/MULTIPLEXER
  • 74AC11157 - Quadruple 2-Line to 1-Line Data Selector/Multiplexer
  • 74AC11158 - QUADRUPLE 2-LINE TO 1-LINE DATA SELECTOR/MULTIPLEXER
  • 74AC11160 - SYNCHRONOUS 4-BIT DECADE COUNTER

Full PDF Text Transcription

Click to expand full text

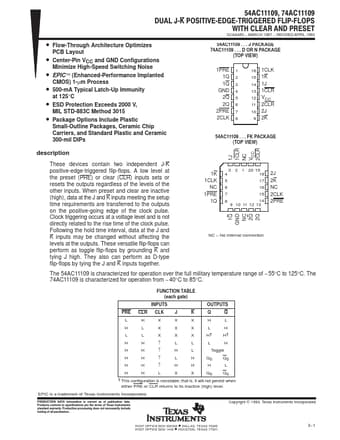

ăą 54AC11109, 74AC11109 DUAL JĆK POSITIVEĆEDGEĆTRIGGERED FLIPĆFLOPS WITH CLEAR AND PRESET SCAS450 − MARCH 1987 − REVISED APRIL 1993 • Flow-Through Architecture Optimizes PCB Layout • Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise • EPIC (Enhanced-Performance Implanted CMOS) 1-µm Process • 500-mA Typical Latch-Up Immunity at 125°C • ESD Protection Exceeds 2000 V, MIL STD-883C Method 3015 • Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs 54AC11109 . . . J PACKAGE 74AC11109 . . . D OR N PACKAGE (TOP VIEW) 1PRE 1Q 1Q GND 2Q 2Q 2PRE 2CLK 1 2 3 4 5 6 7 8 16 1CLK 15 1K 14 1J 13 1CLR 12 VCC 11 2CLR 10 2J 9 2K 54AC11109 . . .
