74AC11151 - 1-of-8 Data Selector/Multiplexer

Datasheet Summary

Description

This monolithic data selector/multiplexer provides full binary decoding to select one-of-eight data sources.

The strobe output-enable (OE) input must be at a low logic level to enable the inputs.

A high level at the strobe terminal forces the W output high and the Y output low.

📥 Download Datasheet

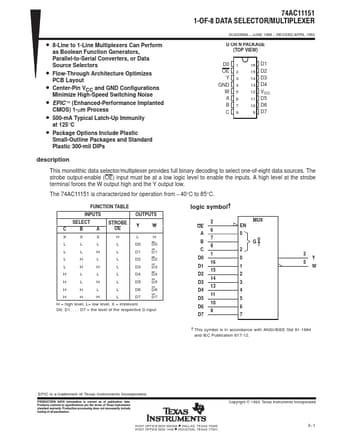

Datasheet preview – 74AC11151

Datasheet Details

Part number 74AC11151
Manufacturer Texas Instruments
File Size 87.32 KB
Description 1-of-8 Data Selector/Multiplexer
Datasheet download datasheet 74AC11151 Datasheet
Additional preview pages of the 74AC11151 datasheet.

📁 Similar Datasheet

  • 74AC11153 - DUAL 4 INPUT MULTIPLEXER (Philips)
  • 74AC11157 - QUAD 2 INPUT MULTIPLEXER (Philips)
  • 74AC11158 - QUAD 2 INPUT MULTIPLEXER (Philips)
  • 74AC11132 - QUAD 2 INPUT NAND SCHMITT TRIGGER (Philips)
  • 74AC11160 - SYNCHRONOUS BCD DECADE COUNTER (Philips)
  • 74AC11181 - 4-BIT ARITHMETIC LOGIC UNIT (Philips)
  • 74AC11190 - ASYNCHRONOUS PRESETTABLE SYNCHRONOUS DECADE UP/DOWN COUNTER (Philips)
  • 74AC11 - TRIPLE 3-INPUT AND GATE (STMicroelectronics)
  • 74AC11 - Triple 3-Input AND Gate (Fairchild Semiconductor)
  • 74AC11239 - DUAL 2 TO 4 LINE DECODER/DEMULTIPLEXER (NXP)
Other Datasheets by Texas Instruments
  • 74AC11153 - DUAL 1-OF-4 DATA SELECTOR/MULTIPLEXER
  • 74AC11157 - Quadruple 2-Line to 1-Line Data Selector/Multiplexer
  • 74AC11158 - QUADRUPLE 2-LINE TO 1-LINE DATA SELECTOR/MULTIPLEXER
  • 74AC11109 - Dual J-K Positive-edge-Triggered Flip-Flops
  • 74AC11112 - DUAL J-K NEGATIVE-EDGE-TRIGGERED FLIP-FLOPS
  • 74AC11132 - QUADRUPLE 2-INPUT POSITIVE-NAND SCHMITT-TRIGGER
  • 74AC11138 - 3-Line To 8-Line Decoder/Demultiplexer
  • 74AC11160 - SYNCHRONOUS 4-BIT DECADE COUNTER

Full PDF Text Transcription

Click to expand full text
ăą • 8-Line to 1-Line Multiplexers Can Perform as Boolean Function Generators, Parallel-to-Serial Converters, or Data Source Selectors • Flow-Through Architecture Optimizes PCB Layout • Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise • EPIC (Enhanced-Performance Implanted CMOS) 1-µm Process • 500-mA Typical Latch-Up Immunity at 125°C • Package Options Include Plastic Small-Outline Packages and Standard Plastic 300-mil DIPs 74AC11151 1ĆOFĆ8 DATA SELECTOR/MULTIPLEXER ą SCAS066A − JUNE 1989 − REVISED APRIL 1993 D OR N PACKAGE (TOP VIEW) D0 OE Y GND W A B C 1 2 3 4 5 6 7 8 16 D1 15 D2 14 D3 13 D4 12 VCC 11 D5 10 D6 9 D7 description This monolithic data selector/multiplexer provides full binary decoding to select one-of-eight data sources.
