ADC101S021 - Single Channel 50 to 200ksps 10-Bit A/D Converter

Description

The ADC101S021 is a low-power, single channel CMOS 10-bit analog-to-digital converter with a highspeed serial interface.

Unlike the conventional practice of specifying performance at a single sample rate only, the ADC101S021 is fully specified over a sample rate range of 50 ksps to 200 ksps.

Features

  • 1.
  • 2 Specified Over a Range of Sample Rates.
  • 6-Lead WSON and SOT-23 Packages.
  • Variable Power Management.
  • Single Power Supply with 2.7V - 5.25V Range.
  • SPI™/QSPI™/.

📥 Download Datasheet

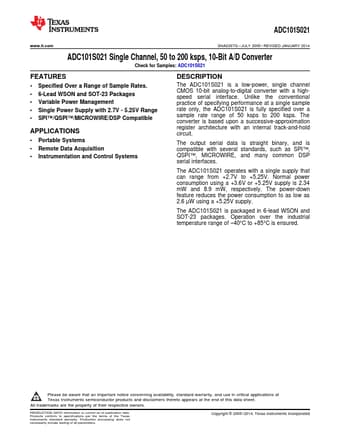

Datasheet preview – ADC101S021
