ADC121S051

12-Bit A/D Converter

Texas Instruments

ADC121S051 Features

* 1

* 2 Specified Over a Range of Sample Rates.

* 6-lead WSON and SOT-23 Packages

* Variable Power Management

* Single Power Supply with 2.7V - 5.25V Range

* SPI™/QSPI™/MICROWIRE/DSP Compatible APPLICATIONS

* Portable Systems

* Remote Data Acquisi

ADC121S051 General Description

The ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a highspeed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The co.

ADC121S051 Datasheet (1.63 MB)

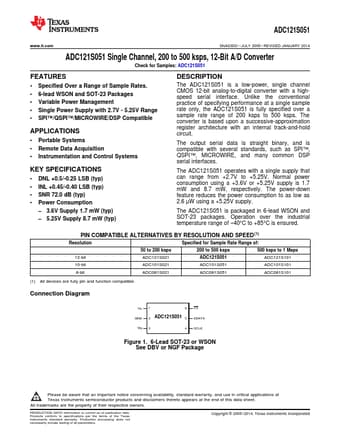

ADC121S051 Datasheet Preview — Preview of ADC121S051 PDF

Datasheet Details

Part number:

ADC121S051

Manufacturer:

Texas Instruments ↗

File Size:

1.63 MB

Description:

12-bit a/d converter.
ADC121S051 www.ti.com SNAS302I

* JULY 2005

* REVISED JANUARY 2014 ADC121S051 Single Channel, 200 to 500 ksps, 12-Bit A/D Converter .
