ADS4125, ADS4122, Ultra-Low-Power ADC

Product Folder Order Now Technical Documents Tools & Software Support & Community ADS4122, ADS4125, ADS4142, ADS4145 SBAS520C * FEBRUARY .
The ADS412x and ADS414x devices are lowersampling speed variants in the ADS41xx family of analog-to-digital converters (ADCs).

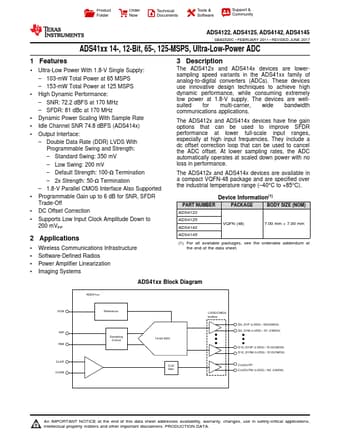

datasheet Preview Page 1 from Datasheet4u.com

ADS4122-etcTI.pdf

ADS4125 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS4125, ADS4122. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS4125, ADS4122

Manufacturer:

Texas Instruments ↗

File Size:

6.79 MB

Description:

Ultra-Low-Power ADC

Note:

This datasheet PDF includes multiple part numbers: ADS4125, ADS4122.
Please refer to the document for exact specifications by model.

Features

* 1 Ultra-Low Power With 1.8-V Single Supply:
* 103-mW Total Power at 65 MSPS
* 153-mW Total Power at 125 MSPS
* High Dynamic Performance:
* SNR: 72.2 dBFS at 170 MHz
* SFDR: 81 dBc at 170 MHz
* Dynamic Power Scaling With Sample Rate
* I

Applications

* Wireless Communications Infrastructure
* Software-Defined Radios
* Power Amplifier Linearization
