ADS4128

Ultralow-Power ADC

ADS4128 Features

* 1 Maximum Sample Rate: 200 MSPS

* Ultralow Power with 1.8-V Single Supply:

* 230-mW Total Power at 200 MSPS

* High Dynamic Performance:

* SNR: 69 dBFS at 170 MHz

* SFDR: 85 dBc at 170 MHz

* Dynamic Power Scaling With Sample Rate

* Outp

ADS4128 General Description

The ADS4128 is a 12-bit analog-to-digital converter (ADC) with sampling rates up to 200 MSPS. This device uses innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8-V supply. The device is well-suited for multi-carrier, wide-bandwidth communicat.

ADS4128 Datasheet (3.16 MB)

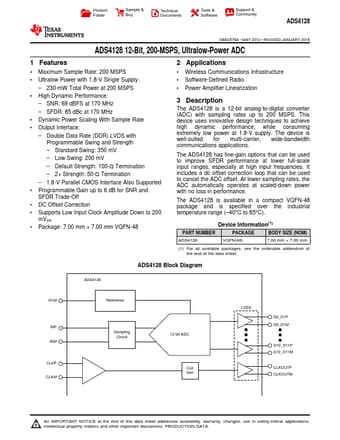

Preview of ADS4128 PDF

Datasheet Details

Part number:

ADS4128

Manufacturer:

Texas Instruments ↗

File Size:

3.16 MB

Description:

Ultralow-power adc.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ADS4128 SBAS578A

* MAY 2012

* REVISED JANUA.
