ADS4129

Ultralow-Power ADC

Texas Instruments

ADS4129 Features

* 1

* 23 Maximum Sample Rate: 250MSPS

* Ultralow Power with 1.8V Single Supply:

* 201mW Total Power at 160MSPS

* 265mW Total Power at 250MSPS

* High Dynamic Performance:

* SNR: 70.6dBFS at 170MHz

* SFDR: 84dBc at 170MHz

* Dynamic Power Sca

ADS4129 General Description

The ADS412x/4x are a family of 12-bit/14-bit analog-to-digital converters (ADCs) with sampling rates up to 250MSPS. These devices use innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8V supply. The devices are well-suited for multi-carrier, w.

ADS4129 Datasheet (3.27 MB)

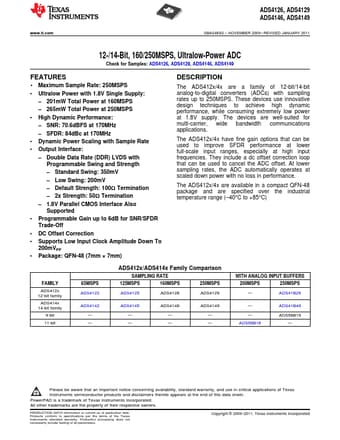

ADS4129 Datasheet Preview — Preview of ADS4129 PDF

Datasheet Details

Part number:

ADS4129

Manufacturer:

Texas Instruments ↗

File Size:

3.27 MB

Description:

Ultralow-power adc.
www.ti.com ADS4126, ADS4129 ADS4146, ADS4149 SBAS483G

* NOVEMBER 2009

* REVISED JANUARY 2011 12-/14-Bit, 160/250MSPS, Ultralow-Power.
