ADS6125, ADS6122 Analog-to-Digital Converters

Texas Instruments

Description

www.ti.com ADS6125, ADS6124 ADS6123, ADS6122 SLAS560A * OCTOBER 2007 * REVISED MARCH 2008 12-BITS, 125/105/80/65 MSPS ADC WITH DDR L.
ADS6125/ADS6124/ADS6123/ADS6122 (ADS612X) is a family of 12-bit A/D converters with sampling frequencies up to 125 MSPS.

📥 Download Datasheet

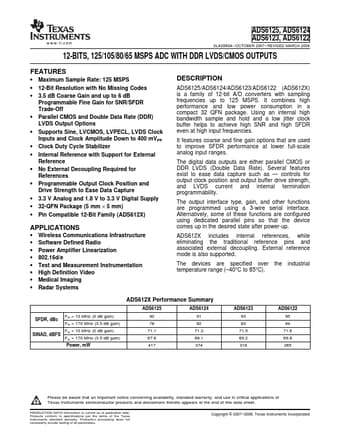

ADS6125 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS6125, ADS6122. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ADS6125, ADS6122
Manufacturer: Texas Instruments ↗
File Size: 2.65 MB
Datasheet: ADS6122-etcTI.pdf
Description: Analog-to-Digital Converters
Note: This datasheet PDF includes multiple part numbers: ADS6125, ADS6122.
Please refer to the document for exact specifications by model.

Features

* 1
* Maximum Sample Rate: 125 MSPS
* 12-Bit Resolution with No Missing Codes
* 3.5 dB Coarse Gain and up to 6 dB Programmable Fine Gain for SNR/SFDR Trade-Off
* Parallel CMOS and Double Data Rate (DDR) LVDS Output Options
* Supports Sine, LVCMOS, LVPECL, LVDS C

Applications

* Wireless Communications Infrastructure
* Software Defined Radio
* Power Amplifier Linearization
* 802.16d/e
* Test and Measurement Instrumentation
* High Definition Video
* Medical Imaging
