ADS8688A, ADS8684A - SAR ADC

ADS8688A Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design ADS8684A, ADS8688A SBAS680 * JULY .
The ADS8684A and ADS8688A are 4- and 8channel, integrated data acquisition systems based on a 16-bit successive approximation (SAR) analogto-digital c.

ADS8688A Features

* 1 16-Bit ADCs with Integrated Analog Front-End
* 4-, 8-Channel MUX with Auto and Manual Scan
* Channel-Independent Programmable Inputs:
* ±10.24 V, ±5.12 V, ±2.56 V, ±1.28 V, ±0.64 V
* 10.24 V, 5.12 V, 2.56 V, 1.28 V
* 5-V Analog Supply: 1.65-V to 5-V

ADS8688A Applications

* Power Automation
* Protection Relays

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADS8688A, ADS8684A. Please refer to the document for exact specifications by model.

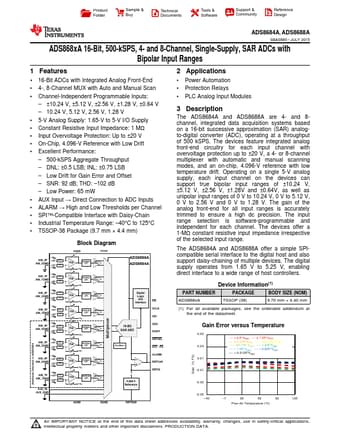

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADS8688A, ADS8684A
Manufacturer
Texas Instruments ↗
File Size
3.53 MB
Datasheet
ADS8684A-etcTI.pdf
Description
SAR ADC
Note
This datasheet PDF includes multiple part numbers: ADS8688A, ADS8684A.
Please refer to the document for exact specifications by model.
