Part number:
ADS8689
Manufacturer:
File Size:
2.30 MB
Description:
Sar adc data acquisition.
ADS8681, ADS8685, ADS8689
SBAS633E
* FEBRUARY 2016
* REVISED AUGUST 2022

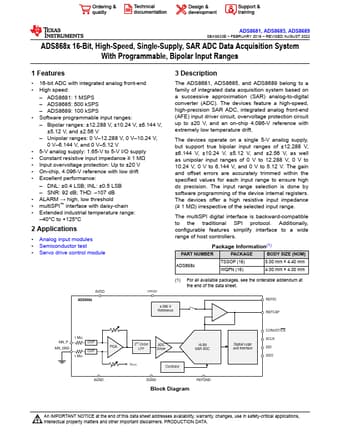

ADS868x 16-Bit, High-Speed, Single-Supply, SAR ADC Data Acqui.
* 16-bit ADC with integrated analog front-end
* High speed:
* ADS8681: 1 MSPS
* ADS8685: 500 kSPS
* ADS8689: 100 kSPS
* Software programmable input ranges:
* Bipolar ranges: ±12.288 V, ±10.24 V, ±6.144 V, ±5.12 V, and ±2.56 V
* Unipolar
ADS8689
2.30 MB
Sar adc data acquisition.
ADS8681, ADS8685, ADS8689
SBAS633E
* FEBRUARY 2016
* REVISED AUGUST 2022
ADS868x 16-Bit, High-Speed, Single-Supply, SAR ADC Data Acqui.
