AMC1100

Fully-Differential Isolation Amplifier

AMC1100 Features

* 1 ±250-mV input voltage range optimized for shunt resistors

* Very low nonlinearity: 0.075% max at 5 V

* Low offset error: 1.5 mV max

* Low noise: 3.1 mVRMS typ

* Low high-side supply current: 8 mA max at 5 V

* Input bandwidth: 60 kHz min

* Fi

AMC1100 General Description

The AMC1100 is a precision isolation amplifier with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250 VPEAK, according to DIN VDE V 0884-11: 2017-01.

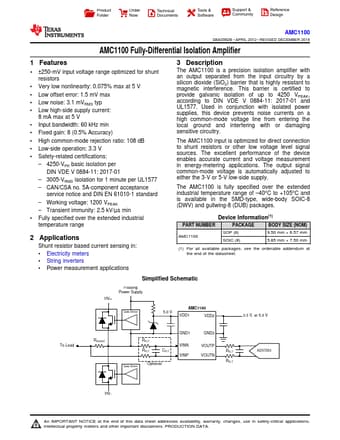

AMC1100 Datasheet (1.64 MB)

Preview of AMC1100 PDF

Datasheet Details

Part number:

AMC1100

Manufacturer:

Texas Instruments ↗

File Size:

1.64 MB

Description:

Fully-differential isolation amplifier.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design AMC1100 SBAS562B

* APRIL 2012
