AMC1200-Q1

Fully-Differential Isolation Amplifier

AMC1200-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Temperature Grade 2:

* 40°C to 105°C

* HBM ESD Classification Level H2

* CDM ESD Classification Level C3B

* ±250-mV Input Voltage Range Optimized for Shu

AMC1200-Q1 General Description

The AMC1200-Q1 is a precision isolation amplifier with the output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier is certified to provide galvanic isolation of up to 4250 VPEAK according to UL1577 and VDE V 0884-1.

AMC1200-Q1 Datasheet (1.43 MB)

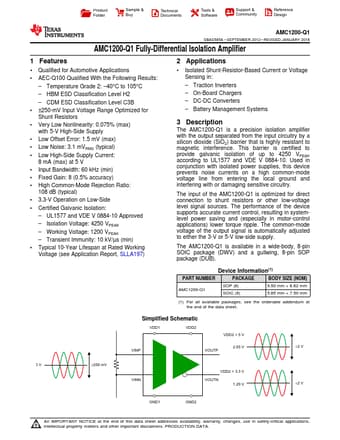

Preview of AMC1200-Q1 PDF

Datasheet Details

Part number:

AMC1200-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.43 MB

Description:

Fully-differential isolation amplifier.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design AMC1200-Q1 SBAS585A

* SEPTEMBER 20.
