AMC1204-Q1

Isolated Delta-Sigma Modulator

AMC1204-Q1 Features

* 1

* Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level H2

* Device CDM ESD Classification Level C3

AMC1204-Q1 General Description

The AMC1204-Q1 is a 1-bit digital output, isolated delta-sigma (ΔΣ) modulators that can be clocked at up to 20 MHz. The digital isolation of the modulator output is provided by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference. This barrier has been certified to prov.

AMC1204-Q1 Datasheet (1.36 MB)

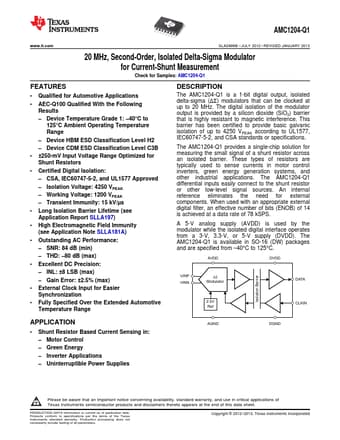

Preview of AMC1204-Q1 PDF

Datasheet Details

Part number:

AMC1204-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.36 MB

Description:

Isolated delta-sigma modulator.
AMC1204-Q1 www.ti.com SLAS886B

* JULY 2012

* REVISED JANUARY 2013 20 MHz, Second-Order, Isolated Delta-Sigma Modulator for Current-.
