AMC1203 Isolated Delta-Sigma Modulator

AMC1203 Description

AMC1203 www.ti.com SBAS427C * FEBRUARY 2008 * REVISED JUNE 2011 1-Bit, 10MHz, 2nd-Order, Isolated Delta-Sigma Modulator Check for Sa.
The AMC1203 is a 1-bit, 10MHz, isolated delta-sigma (ΔΣ) modulator with an output buffer separated from the input interface circuitry by a silicon dio.

AMC1203 Features

* 1
* 2 16-Bit Resolution
* SNR: 80.5dB min
* THD:
* 88dB max (AMC1203B)
* ±280mV Input Range with +5V Supply
* Internal 2.5V Reference Voltage: 1% Accuracy
* Gain Error: ±1% (AMC1203B)
* UL1577, IEC60747-5-2 (VDE0884, Rev. 2), and IEC61010

AMC1203 Applications

* Shunt Based Current Sensing in:
* Motor Control
* Uninterruptible Power Supplies
* Power Inverters

📥 Download Datasheet

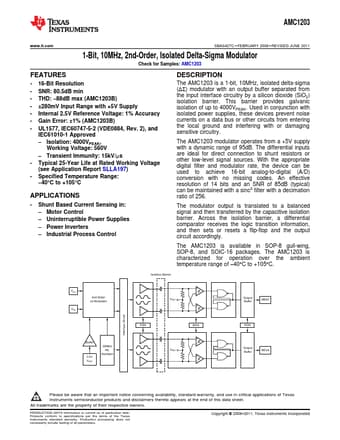

Preview of AMC1203 PDF
