BUF634 - 250mA High-Speed Buffer

BUF634 Description

BUF634 SBOS030C * AUGUST 2000 * REVISED MARCH 2024 BUF634 250mA High-Speed Buffer 1 .
The BUF634 is a high-speed, unity-gain, open-loop buffer recommended for a wide range of applications.

BUF634 Features

* A newer version of this device is now available: BUF634A
* High output current: 250mA
* Slew rate: 2000V/µs
* Pin-selected bandwidth: 30MHz to 180MHz
* Low quiescent current: 1.5mA (30MHz BW)
* Wide supply range: ±2.25V to ±18V
* Internal cur

BUF634 Applications

* Valve driver
* Solenoid driver
* Op amp current booster
* Line driver
* Headphone driver
* Video driver
* Motor driver
* Test equipment

📥 Download Datasheet

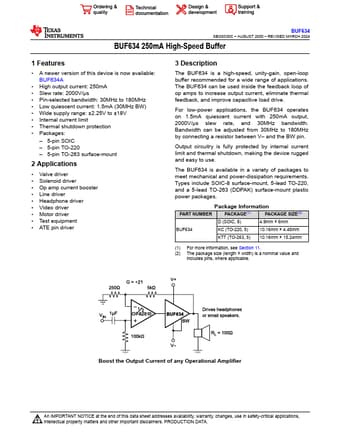

Preview of BUF634 PDF
datasheet Preview Page 2 datasheet Preview Page 3
