BUF634A

High-Speed Buffer

BUF634A Features

* Pin-Selected Bandwidth: 35 MHz to 210 MHz

* High Output Current: 250 mA

* Slew Rate: 3750 V/µs

* Low Quiescent Current: 1.5 mA (35-MHz BW)

* Wide Supply Range: ±2.25 V to ±18 V

* Internal Output Current Limit

* Thermal Shutdown Protection

BUF634A General Description

The BUF634A device is a high-performance, highfidelity, open-loop buffer that is capable of driving 250 mA of output current. The BUF634A is a 36-V device with an adjustable bandwidth of 35 MHz to 210 MHz, which is accomplished by varying the value of an external resistor between the V

* and .

BUF634A Datasheet (3.29 MB)

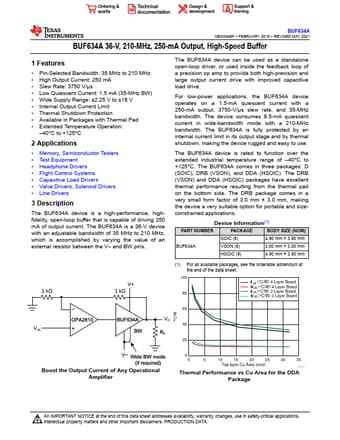

Preview of BUF634A PDF

Datasheet Details

Part number:

BUF634A

Manufacturer:

Texas Instruments ↗

File Size:

3.29 MB

Description:

High-speed buffer.
