CD4066BE Datasheet, switch equivalent, Texas Instruments

CD4066BE Features

• Switch
• 15V digital or ±7.5V peak-to-peak switching
• 125Ω typical on-state resistance for 15V operation
• Switch on-state resistance matched to within 5Ω over 15V sig

PDF File Details

Part number:

CD4066BE

Manufacturer:

Texas Instruments ↗

File Size:

1.23MB

Download:

📄 Datasheet

Description:

Cmos quad bilateral switch. The CD4066B device is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-

CD4066BE Application

• Applications
• Analog signal switching and multiplexing: signal gating, modulators, squelch controls, demodulators, choppers, commutating sw

TAGS

CD4066BE

Texas Instruments

📁 Related Datasheet

CD4066B - CMOS QUAD BILATERAL SWITCH (RCA)
.

CD4066B - CMOS Quad Bilateral Switch (Texas Instruments)

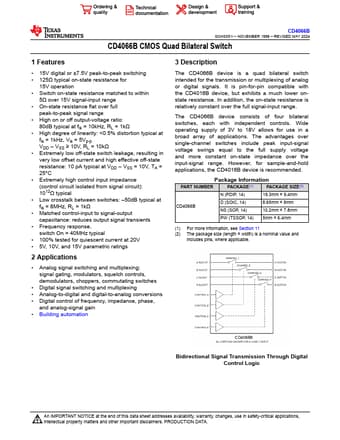

CD4066B SCHS051I – NOVEMBER 1998 – REVISED MAY 2024 CD4066B CMOS Quad Bilateral Switch 1 Features • 15V digital or ±7.5V peak-to-peak switching • 125.
