CD4066BC

Quad Bilateral Switch

CD4066BC Features

* Y Y Y Y Y Y Y Y Wide supply voltage range 3V to 15V High noise immunity 0 45 VDD (typ ) g 7 5 VPEAK Wide range of digital and analog switching ‘‘ON’’ resistance for 15V operation 80X Matched ‘‘ON’’ resistance DRON e 5X (typ ) over 15V signal input ‘‘ON’’ resistance flat over peak-to-peak signal

CD4066BC General Description

The CD4066BM CD4066BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals It is pin-for-pin compatible with CD4016BM CD4016BC but has a much lower ‘‘ON’’ resistance and ‘‘ON’’ resistance is relatively constant over the input-signal range Y Y Y Y Ex.

CD4066BC Datasheet (169.04 KB)

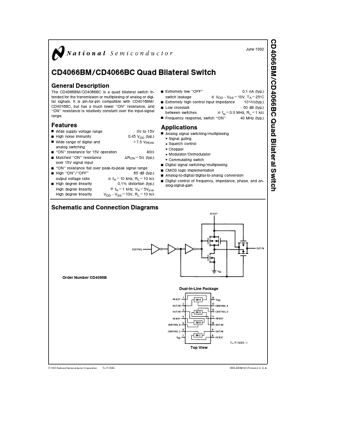

Preview of CD4066BC PDF

Datasheet Details

Part number:

CD4066BC

Manufacturer:

National Semiconductor

File Size:

169.04 KB

Description:

Quad bilateral switch.
