CD54ACT280 Datasheet, Generator/checker, Texas Instruments

CD54ACT280 Features

  • Generator/checker
  • Buffered Inputs
  • Typical Propagation Delay - 10ns at VCC = 5V, TA = 25oC, CL = 50pF
  • Exceeds 2kV ESD Protection per MIL-STD-883, Method 3015
  • SCR-La

PDF File Details

Part number:

CD54ACT280

Manufacturer:

Texas Instruments ↗

File Size:

522.01kb

Download:

📄 Datasheet

Description:

9-bit odd/even parity generator/checker. The ’AC280 and ’ACT280 are 9-bit odd/even parity generator/checkers that utilize Advanced CMOS Logic technology. Both even and odd pa

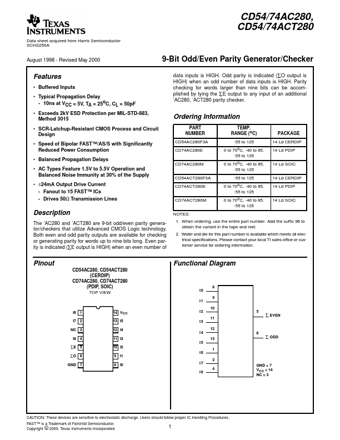

Datasheet Preview: CD54ACT280 📥 Download PDF (522.01kb)
