CD54HCT365, CD54HC365 High Speed CMOS Logic Hex Buffer/Line Driver

CD54HCT365 Description

CD54HC365, CD74HC365, CD54HCT365 CD74HCT365, CD54HC366, CD74HC366 SCHS180D * NOVEMBER 1997 * REVISED JULY 2022 High Speed CMOS Logic H.
The ’HC365, ’HCT365, and ’HC366 silicon gate CMOS three-state buffers are general purpose highspeed non-inverting and inverting buffers.

CD54HCT365 Features

* Buffered inputs
* High current bus driver outputs
* Typical propagation delay tPLH, tPHL = 8 ns at VCC = 5 V, CL = 15 pF, TA = 25℃
* Fanout (over temperature range)
* Standard outputs: 10 LSTTL Loads
* Bus driver outputs: 15 LSTTL Loads
* Wid

CD54HCT365 Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. CD54HC365, CD74HC365, CD54HCT365 CD74HCT365, CD54HC366, CD74HC366 SCHS180D
* NOVEMBER 1997

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD54HCT365, CD54HC365. Please refer to the document for exact specifications by model.

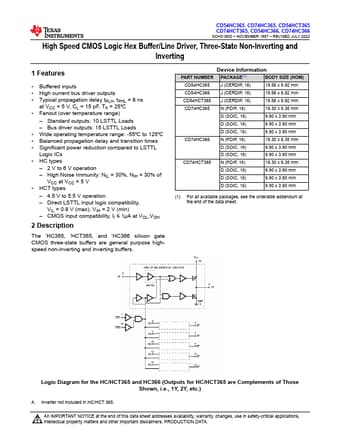

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD54HCT365, CD54HC365
Manufacturer
Texas Instruments ↗
File Size
935.94 KB
Datasheet
CD54HC365-etcTI.pdf
Description
High Speed CMOS Logic Hex Buffer/Line Driver
Note
This datasheet PDF includes multiple part numbers: CD54HCT365, CD54HC365.
Please refer to the document for exact specifications by model.
