CD54HCT368, CD54HC367 Three-State Non-Inverting and Inverting

CD54HCT368 Description

CD54HC367, CD74HC367, CD54HCT367 CD74HCT367, CD54HC368, CD74HC368, CD74HCT368 SCHS181E * NOVEMBER 1997 * REVISED FEBRUARY 2022 CDx4HC3.
The ’HC367, ’HCT367, ’HC368, and CD74HCT368 silicon gate CMOS three-state buffers are general purpose high-speed non-inverting and inverting buffers.

CD54HCT368 Features

* Buffered inputs
* High current bus driver outputs
* Two independent three-state enable controls
* Typical propagation delay tPLH, tPHL = 8 ns at VCC = 5 V, CL =15 pF, TA = 25℃
* Fanout (over temperature range)
* Standard outputs: 10 LSTTL Loads

CD54HCT368 Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. CD54HC367, CD74HC367, CD54HCT367 CD74HCT367, CD54HC368, CD74HC368, CD74HCT368 SCHS181E
* NOVEMBER 1997

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD54HCT368, CD54HC367. Please refer to the document for exact specifications by model.

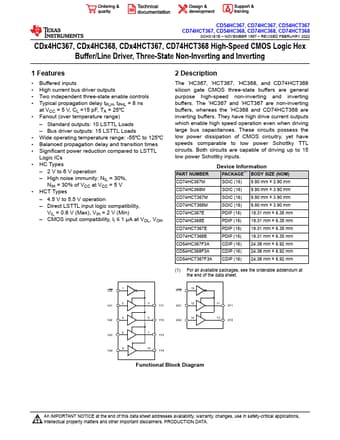

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD54HCT368, CD54HC367
Manufacturer
Texas Instruments ↗
File Size
1.00 MB
Datasheet
CD54HC367-etcTI.pdf
Description
Three-State Non-Inverting and Inverting
Note
This datasheet PDF includes multiple part numbers: CD54HCT368, CD54HC367.
Please refer to the document for exact specifications by model.
