CD54HCT367F3A Three-State Non-Inverting and Inverting

The ’HC367, ’HCT367, ’HC368, and CD74HCT368 silicon gate CMOS three-state buffers are general purpose high-speed non-inverting and inverting buffers. The ’HC367 and ’HCT367 are non-inverting buffers, whereas the ’HC368 and CD74HCT368 are inverting buffers. They have high drive current outputs which.

CD54HCT367F3A Features

* Buffered inputs

* High current bus driver outputs

* Two independent three-state enable controls

* Typical propagation delay tPLH, tPHL = 8 ns at VCC = 5 V, CL =15 pF, TA = 25℃

* Fanout (over temperature range)

* Standard outputs: 10 LSTTL Loads

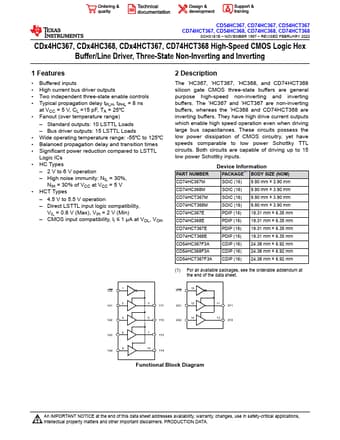

CD54HCT367F3A Datasheet (1.00 MB)
