CD74ACT10 - TRIPLE 3-INPUT POSITIVE-NAND GATES

ordering information The CD74ACT10 contains three independent 3-input NAND gates.

The device performs the Boolean functions Y = A * B * C or Y = A + B + C in positive logic.

ORDERING INFORMATION TA PACKAGE† ORDERABLE PART NUMBER TOP-SIDE MARKING PDIP * E Tube CD74ACT

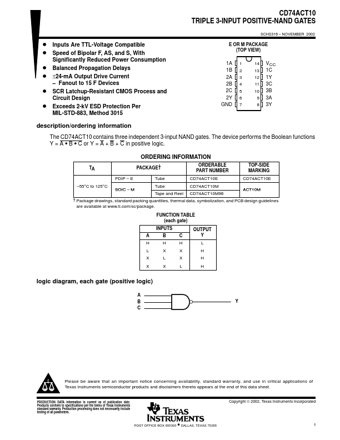

CD74ACT10 TRIPLE 3-INPUT POSITIVE-NAND GATES D Inputs Are TTL-Voltage Compatible D Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption D Balanced Propagation Delays D ±24-mA Output Drive Current Fanout to 15 F Devices D SCR Latchup-Resistant CMOS Process and Circuit Design D Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015 SCHS316 NOVEMBER 2002 E OR M PACKAGE (TOP VIEW) 1A 1 1B 2 2A 3 2B 4 2C 5 2Y 6 GND 7 14 VCC 13 1C 12 1Y 11 3C 10 3B 9 3A
