CD74ACT109 Datasheet, Flip-flops, Texas Instruments

PDF File Details

Part number:

CD74ACT109

Manufacturer:

Texas Instruments ↗

File Size:

475.21kb

Download:

📄 Datasheet

Description:

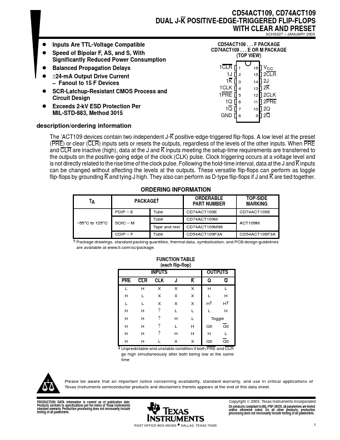

Dual j-k positive-edge-triggered flip-flops. ordering information The ’ACT109 devices contain two independent J-K positive-edge-triggered flip-flops. A low level at the preset (

CD74ACT109 Application

• Applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information
