CD74HC04

Hex Inverter

CD74HC04 Features

* Buffered inputs

* Wide operating voltage range: 2 V to 6 V

* Wide operating temperature range:

* 55°C to +125°C

* Supports fanout up to 10 LSTTL loads

* Significant power reduction compared to LSTTL logic ICs 2 Applications

* Synchronize inver

CD74HC04 General Description

This device contains six independent inverters. Each gate performs the Boolean function Y = A in positive logic. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) CD74HC04M SOIC (14) 8.70 mm × 3.90 mm CD74HC04E PDIP (14) 19.30 mm × 6.40 mm CD54HC04F CDIP (14) 21.30 mm × 7.60 mm.

CD74HC04 Datasheet (1.16 MB)

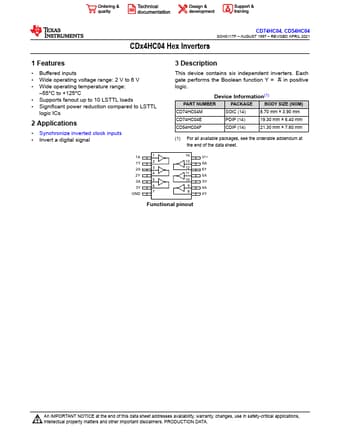

Preview of CD74HC04 PDF

Datasheet Details

Part number:

CD74HC04

Manufacturer:

Texas Instruments ↗

File Size:

1.16 MB

Description:

Hex inverter.
www.ti.com CDx4HC04 Hex Inverters SCHS117F

* AUGUSTCC1DD9977744

*HHRCCE00VI44S,,ECCDDDAP55R44IHHL CC20002441 SCHS117F

* AUGUS.
