CD74HC21 - Dual 4-Input AND Gates

CD74HC21 Description

CD74HC21, CD54HC21 SCHS131D * AUGUST 1997 * REVISED MAY 2021 CDx4HC21 Dual 4-Input AND Gates 1 .
Buffered inputs. Wide operating voltage range: 2 V to 6 V. Wide operating temperature range: -55°C to +125°C. Su.

CD74HC21 Applications

* Combining power good signals
* Enable digital signals This device contains two independent 4-input AND gates. Each gate performs the Boolean function Y = A
* B
* C
* D in positive logic. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) CD74HC21M SOIC (14

📥 Download Datasheet

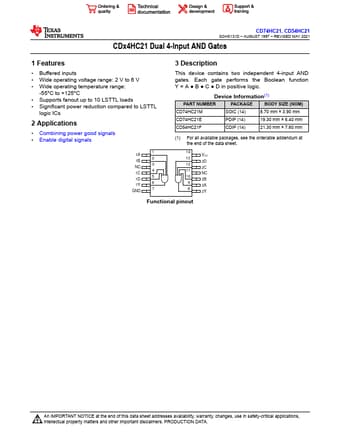

Preview of CD74HC21 PDF
