CD74HC21E, CD74HC21 Dual 4-Input AND Gates

Texas Instruments

Description

CD74HC21, CD54HC21 SCHS131D * AUGUST 1997 * REVISED MAY 2021 CDx4HC21 Dual 4-Input AND Gates 1 .
Buffered inputs. Wide operating voltage range: 2 V to 6 V. Wide operating temperature range: -55°C to +125°C. Su.

📥 Download Datasheet

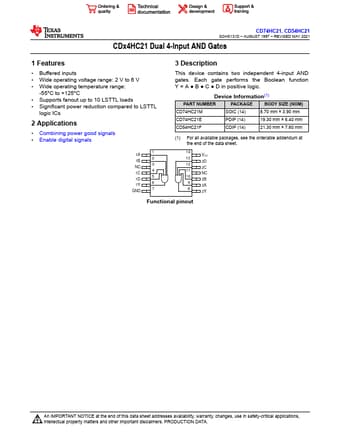

CD74HC21E Datasheet Preview — This datasheet PDF includes multiple part numbers: CD74HC21E, CD74HC21. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CD74HC21E, CD74HC21
Manufacturer: Texas Instruments ↗
File Size: 1.20 MB
Datasheet: CD74HC21-etcTI.pdf
Description: Dual 4-Input AND Gates
Note: This datasheet PDF includes multiple part numbers: CD74HC21E, CD74HC21.
Please refer to the document for exact specifications by model.

Applications

* Combining power good signals
* Enable digital signals This device contains two independent 4-input AND gates. Each gate performs the Boolean function Y = A
* B
* C
* D in positive logic. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) CD74HC21M SOIC (14
