CD74HC4052E

High-Speed CMOS Logic Analog Multiplexers/Demultiplexers

CD74HC4052E Features

* 1 Wide Analog Input Voltage Range: ±5-V Maximum

* Low ON-Resistance

* 70-Ω Typical (VCC

* VEE = 4.5 V)

* 40-Ω Typical (VCC

* VEE = 9 V)

* Low Crosstalk Between Switches

* Fast Switching and Propagation Speeds

* Break-Before-Mak

CD74HC4052E General Description

The CDx4HC405x and CDx4HCT405x devices are digitally controlled analog switches that use silicon gate CMOS technology to achieve operating speeds similar to LSTTL with the low-power consumption of standard CMOS integrated circuits. These analog multiplexers and demultiplexers control analog voltages.

CD74HC4052E Datasheet (1.74 MB)

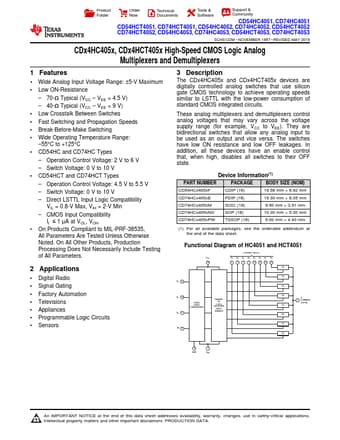

Preview of CD74HC4052E PDF

Datasheet Details

Part number:

CD74HC4052E

Manufacturer:

Texas Instruments ↗

File Size:

1.74 MB

Description:

High-speed cmos logic analog multiplexers/demultiplexers.
