CD74HC4051-Q1 Datasheet - Texas Instruments

Automotive Analog Multiplexer or Demultiplexer

CD74HC4051-Q1 Features

* Qualified for automotive applications

* Wide analog input voltage range of ± 5V maximum

* Low ON resistance:

* 70Ω typical (V CC

* V EE = 4.5V)

* 40Ω typical (V CC

* V EE = 9V)

* Low crosstalk between switches

* Fast switching

CD74HC4051-Q1 General Description

This device is a digitally controlled analog switch that utilizes silicon-gate CMOS technology to achieve operating speeds similar to LSTTL, with the low power consumption of standard CMOS integrated circuits. This analog multiplexer/demultiplexer controls analog voltages that may vary across the .

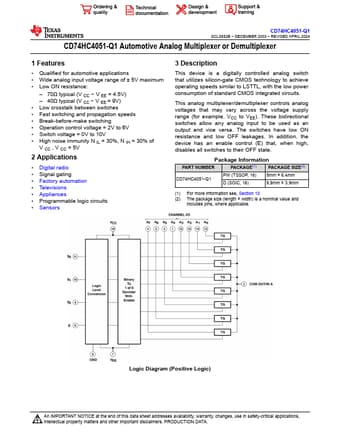

CD74HC4051-Q1 Datasheet (1.12 MB)

Preview of CD74HC4051-Q1 PDF

Datasheet Details

Part number:

CD74HC4051-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.12 MB

Description:

Automotive analog multiplexer or demultiplexer.
