CD74HCT00M, CD74HC00, Quadruple 2-Input NAND Gates

www.ti.com CD74HCT00, CD54HCT00 CD74SHCHCST30980, *CJADN5U4AHRYC2T00201 SCHS398 * JANUARY 2021 CDx4HCT00 Quadruple 2-Input NAND Gates.
This device contains four independent 2-input NAND gates. B in positive logic.

CD74HC00-etcTI.pdf

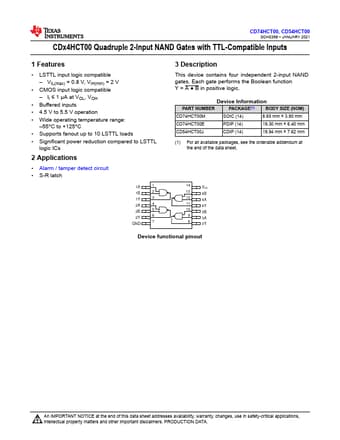

CD74HCT00M Datasheet Preview — This datasheet PDF includes multiple part numbers: CD74HCT00M, CD74HC00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CD74HCT00M, CD74HC00

Manufacturer:

Texas Instruments ↗

File Size:

1.00 MB

Description:

Quadruple 2-Input NAND Gates

Note:

This datasheet PDF includes multiple part numbers: CD74HCT00M, CD74HC00.
Please refer to the document for exact specifications by model.

Features

* LSTTL input logic compatible
* VIL(max) = 0.8 V, VIH(min) = 2 V
* CMOS input logic compatible
* II ≤ 1 µA at VOL, VOH
* Buffered inputs
* 4.5 V to 5.5 V operation
* Wide operating temperature range:
* 55°C to +125°C
* Supports

Applications

* Alarm / tamper detect circuit
