CD74HCT367, CD74HC367 Datasheet - Texas Instruments

CD74HCT367 Three-State Non-Inverting and Inverting

The ’HC367, ’HCT367, ’HC368, and CD74HCT368 silicon gate CMOS three-state buffers are general purpose high-speed non-inverting and inverting buffers. The ’HC367 and ’HCT367 are non-inverting buffers, whereas the ’HC368 and CD74HCT368 are inverting buffers. They have high drive current outputs which.

CD74HCT367 Features

* Buffered inputs

* High current bus driver outputs

* Two independent three-state enable controls

* Typical propagation delay tPLH, tPHL = 8 ns at VCC = 5 V, CL =15 pF, TA = 25℃

* Fanout (over temperature range)

* Standard outputs: 10 LSTTL Loads

CD74HC367-etcTI.pdf

This datasheet PDF includes multiple part numbers: CD74HCT367, CD74HC367. Please refer to the document for exact specifications by model.

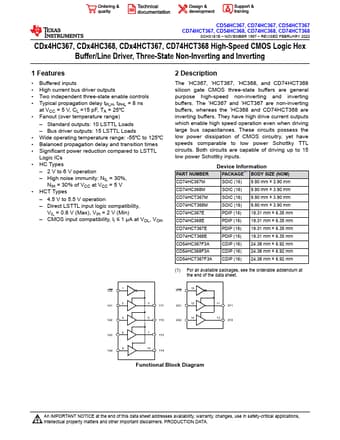

CD74HCT367 Datasheet Preview Page 2 CD74HCT367 Datasheet Preview Page 3

Datasheet Details

Part number:

CD74HCT367, CD74HC367

Manufacturer:

Texas Instruments ↗

File Size:

1.00 MB

Description:

Three-state non-inverting and inverting.

Note:

This datasheet PDF includes multiple part numbers: CD74HCT367, CD74HC367.
Please refer to the document for exact specifications by model.
