CD74HCT540E, CD74HCT540 Octal Buffer and Line Drivers

CD74HCT540E Description

CD54HC540, CD74HC540, CD54HC541, CD74HC541, CD74HCT540, CD54HCT541, CD74HCT541 SCHS189E * JANUARY 1998 * REVISED OCTOBER 2022 CDx4HC(T.
The ’HC540 and CD74HCT540 are Inverting Octal Buffers and Line Drivers with Three-State Outputs and the capability to drive 15 LSTTL loads.

CD74HCT540E Features

* ’HC540, CD74HCT540: inverting
* ’HC541, ’HCT541: non-inverting
* Buffered inputs
* Three-state outputs
* Bus line driving capability
* Typical propagation delay = 9 ns at VCC = 5 V, CL = 15 pF, TA = 25℃
* Fanout (over temperature range)

CD74HCT540E Applications

* intellectual property matters and other important disclaimers. PRODUCTION DATA. CD54HC540, CD74HC540, CD54HC541, CD74HC541, CD74HCT540, CD54HCT541, CD74HCT541 SCHS189E
* JANUARY 1998

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD74HCT540E, CD74HCT540. Please refer to the document for exact specifications by model.

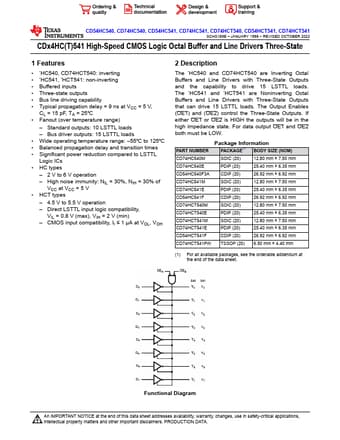

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD74HCT540E, CD74HCT540
Manufacturer
Texas Instruments ↗
File Size
1.43 MB
Datasheet
CD74HCT540-etcTI.pdf
Description
Octal Buffer and Line Drivers
Note
This datasheet PDF includes multiple part numbers: CD74HCT540E, CD74HCT540.
Please refer to the document for exact specifications by model.
