CSD19538Q3A - 100V N-Channel Power MOSFET

The CSD19538Q3A by Texas Instruments is a 100V N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

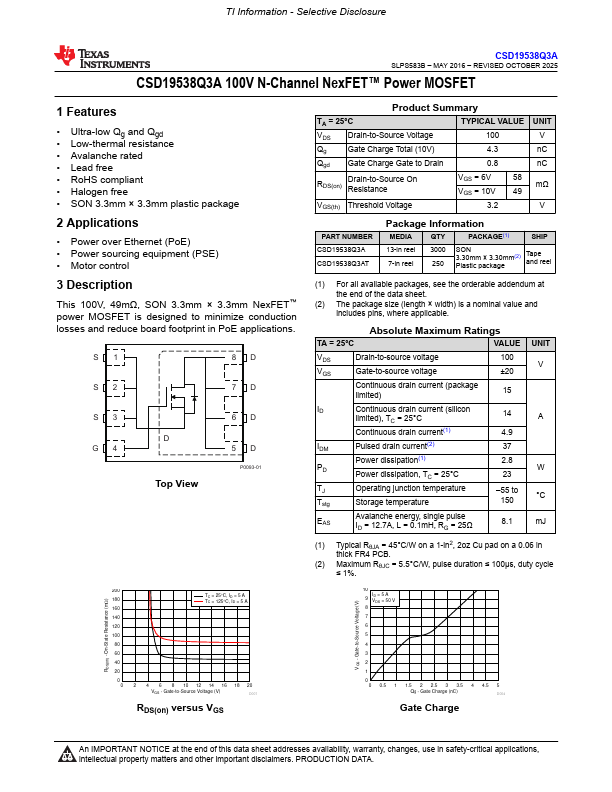

Official preview page of the CSD19538Q3A 100V N-Channel Power MOSFET datasheet (Texas Instruments).

Datasheet Details

Part number CSD19538Q3A
Manufacturer Texas Instruments
File Size 847.23 KB
Description 100V N-Channel Power MOSFET
Datasheet download datasheet CSD19538Q3A-etcTI.pdf

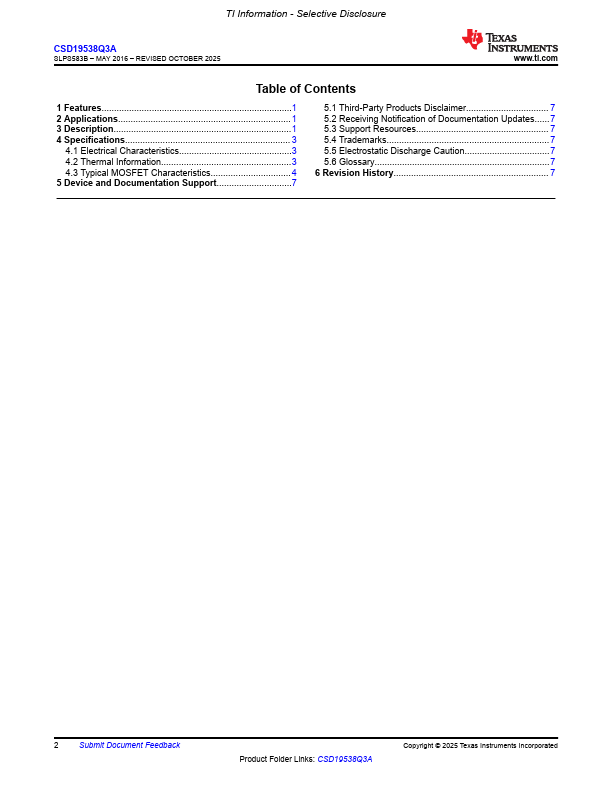

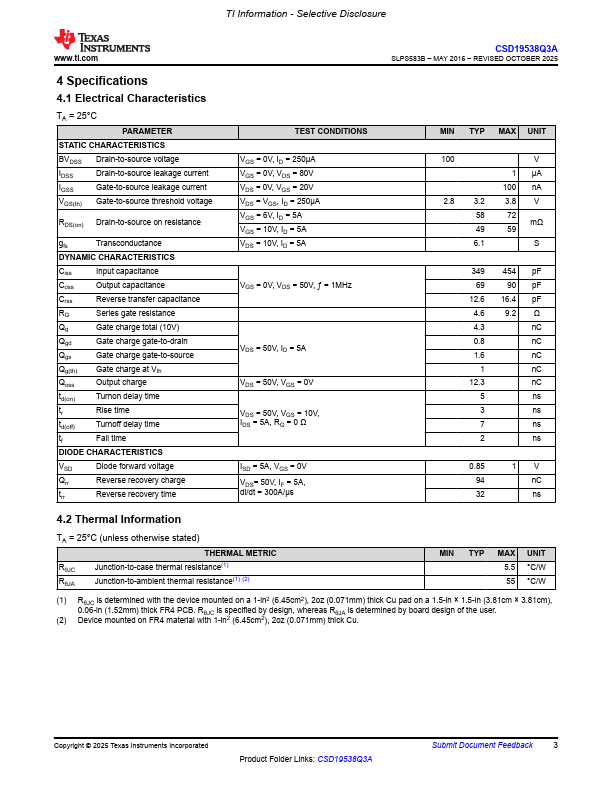

Additional preview pages of the CSD19538Q3A datasheet.

CSD19538Q3A Product details

Description

This 100V, 49mΩ, SON 3.3mm × 3.3mm NexFET™ power MOSFET is designed to minimize conduction losses and reduce board footprint in PoE applications.

Features
