CSD96371Q5M Datasheet - Texas Instruments

Synchronous Buck NexFET Power Stage

CSD96371Q5M Features

* 1

* 2 92% System Efficiency at 30A

* High Frequency Operation (Up To 2MHz)

* High Density

* SON 5-mm × 6-mm Footprint

* Low Power Loss 3.4W at 30A

* Ultra Low Inductance Package

* System Optimized PCB Footprint

* 3.3V and 5V PWM Signal C

CSD96371Q5M General Description

The CSD96371Q5M NexFET™ Power Stage has an optimized design for use in a high power high density Synchronous Buck converter. This product integrates the gate driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high current, high efficiency, and high .

CSD96371Q5M Datasheet (769.22 KB)

Rating: 1 ★ (2 votes)

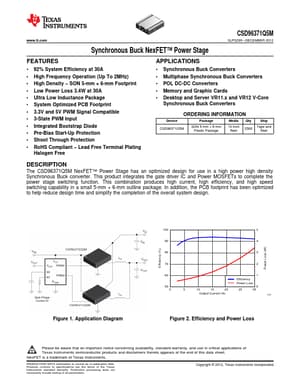

Preview of CSD96371Q5M PDF

Datasheet Details

Part number:

CSD96371Q5M

Manufacturer:

Texas Instruments ↗

File Size:

769.22 KB

Description:

Synchronous buck nexfet power stage.
