DAC60501

Voltage-Output DAC

Texas Instruments

DAC60501 Features

* 16-bit performance: 1-LSB INL and DNL (max)

* Low glitch energy: 4 nV

* s

* Wide power supply: 2.7 V to 5.5 V

* Buffered output range: 5 V, 2.5 V, or 1.25 V

* Very-low power: 1 mA at 5.5 V

* Integrated 5-ppm/°C (max), 2.5-V precision reference

DAC60501 General Description

The 16-bit DAC80501, 14-bit DAC70501, and 12-bit DAC60501 (DACx0501) digital-to-analog converters (DACs) are highly accurate, low-power devices with voltage-output. The DACx0501 are specified monotonic by design, and offer linearity of < 1 LSB. These devices include a 2.5-V, 5-ppm/°C internal refer.

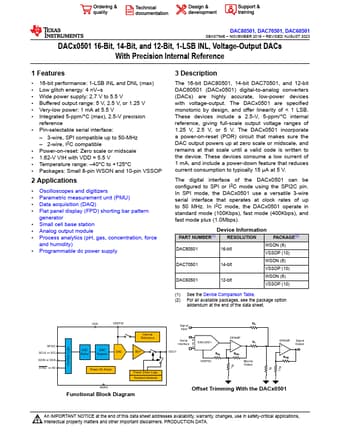

DAC60501 Datasheet (2.86 MB)

DAC60501 Datasheet Preview — Preview of DAC60501 PDF

Datasheet Details

Part number:

DAC60501

Manufacturer:

Texas Instruments ↗

File Size:

2.86 MB

Description:

Voltage-output dac.
DAC80501, DAC70501, DAC60501 SBAS794E

* NOVEMBER 2018

* REVISED AUGUST 2023 DACx0501 16-Bit, 14-Bit, and 12-Bit, 1-LSB INL, Voltage-Ou.
